Basic Chemistry of Ozone

Ozone (O₃) is a highly reactive molecule composed of three oxygen atoms. It is formed when oxygen molecules (O₂) are exposed to energy, splitting into oxygen atoms, which then combine with O₂ molecules to form ozone. This process occurs through the following reactions:

• Step 1: O₂ + electron → O- O-

(Oxygen molecule is split into individual oxygen atoms)



• Step 2: O- + O₂ → O₃

(An oxygen atom combines with an oxygen molecule to form ozone)

Ozone is an unstable molecule, decomposing relatively quickly back into oxygen, especially when dissolved in water. Its instability is what makes ozone such an effective oxidant, as it readily reacts with other substances.

Explanation of Ozone Formation and Redox Reactions

Ozone is a potent oxidant because it participates in redox reactions. In a redox reaction, an oxidant gains electrons, while a reductant loses electrons. When ozone dissolves in water, it reacts with contaminants through two primary pathways:

• Direct Oxidation: Ozone directly reacts with substances, transferring oxygen atoms to them.
• Indirect Oxidation: During ozone decomposition, hydroxyl radicals (OH·), which are even stronger oxidants, are formed and react with a broad range of organic compounds.

These redox reactions are crucial for both disinfection and the oxidation of harmful water constituents.

Role of Hydroxyl Radicals in Oxidation

One of the most important aspects of ozone chemistry in water treatment is the formation of hydroxyl radicals (OH·) during ozone decomposition. Hydroxyl radicals are powerful oxidizing agents, with a higher oxidation potential than ozone itself. These radicals react rapidly with organic compounds, breaking them down into simpler, less harmful substances.

In some advanced applications, hydrogen peroxide (H₂O₂) is added to the water alongside ozone to promote the formation of more hydroxyl radicals. This process is known as the ozone-peroxide advanced oxidation process (O₃/H₂O₂ or peroxone), which is highly effective at treating complex organic contaminants and enhancing water purification.

Decomposition of Ozone and Reactions in Water

Once ozone is injected into water, it immediately begins to decay, forming oxygen and hydroxyl radicals. The rate of this decomposition is influenced by several factors, including the temperature of the water, pH levels, and the presence of dissolved organic and inorganic materials. These factors can accelerate or slow down the breakdown of ozone, affecting its treatment efficacy.

Ozone’s reactions in water serve two main purposes:

• Disinfection: Ozone effectively inactivates pathogens by disrupting their cell walls, causing them to lose their viability.
• Oxidation: Ozone oxidizes organic and inorganic contaminants, such as taste and odor compounds, metals like iron and manganese, and synthetic chemicals.

Ozone in Disinfection and Oxidation

In water treatment, ozone’s primary functions are disinfection and oxidation. Ozone disrupts the cell membranes of pathogens, such as Giardia, Cryptosporidium, and viruses, rendering them inactive. This disinfection process is critical for ensuring public health and meeting regulatory compliance for water treatment.

In addition to disinfection, ozone oxidizes various compounds, removing unwanted substances like taste and odor compounds, color-causing chemicals, and trace organic pollutants. These oxidation reactions help improve water quality and make it safer for consumption and reuse.

Use of Hydroxyl Radicals in Advanced Oxidation Processes (AOPs)

In Advanced Oxidation Processes (AOPs), the combination of ozone and hydroxyl radicals is used to achieve higher oxidation power than ozone alone. This makes AOPs highly effective for removing trace organic compounds that are resistant to conventional treatment methods. The O₃/H₂O₂ process, commonly referred to as peroxone, is a widely used AOP in water treatment.

AOPs are particularly useful in removing contaminants of emerging concern, such as pharmaceuticals, endocrine-disrupting chemicals (EDCs), and personal care products (PCPs), which are often difficult to treat with standard processes. These radicals break down complex organic molecules into smaller, less harmful compounds, significantly improving the quality of treated water.

In reuse applications, ozone reactions with dissolved organic matter naturally generate significant quantities of hydroxyl radicals, reducing the need for hydrogen peroxide addition. This makes ozone-based AOPs both efficient and economical for improving water quality in challenging matrices like wastewater.

Disinfection

Ozone is widely recognized for its superior ability to inactivate a range of pathogens, including viruses, protozoa like Giardia and Cryptosporidium, and other microorganisms that are harmful to human health. The mechanism of disinfection with ozone primarily involves the destruction of the cell walls of these pathogens through oxidation, leading to cell lysis, which renders them unable to replicate or survive.

In potable reuse applications, ozone plays a critical role in ensuring that the treated water meets safety standards. Disinfection with ozone is a fast and highly effective process, particularly at higher water temperatures. It is one of the few disinfectants capable of achieving significant log reductions for Cryptosporidium and Giardia, which are otherwise resistant to many other disinfection methods.

Ozone’s effectiveness is often measured by its log removal value (LRV), which indicates the percentage reduction of specific pathogens from the water. Achieving compliance with regulatory guidelines, such as those established by the U.S. Environmental Protection Agency (EPA), is dependent on achieving the required CT value (the product of the disinfectant concentration and the contact time) to meet pathogen inactivation goals.

Log Removal Value (LRV) and Compliance with EPA Guidelines

Disinfection with ozone is not only efficient but also measurable through the calculation of log removal values (LRV). The CT value, which is a critical factor in determining LRV, represents the concentration of ozone multiplied by the contact time required to achieve a specific level of pathogen inactivation. The U.S. EPA sets specific guidelines for the CT values required for different pathogens, and ozone systems must be carefully monitored to ensure compliance.

In California, for example, the Surface Water Treatment Rule (SWTR) and the Long-Term 2 Enhanced Surface Water Treatment Rule (LT2ESWTR) dictate that potable reuse systems using ozone must achieve a certain LRV for Giardia, viruses, and Cryptosporidium. These systems are often required to install multiple dissolved ozone sensors to monitor CT and ensure that the required LRV is achieved consistently. Ozone disinfection, when properly managed, significantly enhances public health protection in water treatment systems.

Oxidation

Ozone is also highly effective as an oxidant, capable of removing various organic and inorganic compounds from water. Oxidation with ozone targets compounds responsible for taste, odor, and color issues in water, making it a preferred treatment method for improving overall water quality.

Ozone reacts with dissolved metals like iron (Fe²⁺) and manganese (Mn²⁺), converting them into insoluble forms that can then be filtered out. It also plays a significant role in the oxidation of nitrogen compounds and other contaminants that may be present in wastewater or raw water sources. The oxidation process with ozone is rapid and efficient, often leading to immediate improvements in water quality, making it an essential step in both potable and wastewater treatment systems.

Removal of Taste, Odor, and Color Compounds

Ozone is particularly effective in addressing taste, odor, and color problems in water treatment. These issues often arise from the presence of organic compounds, such as those derived from algae or decaying vegetation, as well as industrial pollutants. Ozone oxidizes these compounds, breaking them down into less harmful substances that do not affect the water's aesthetic qualities.

The use of ozone to address taste and odor issues is a common practice in water treatment plants. Additionally, the oxidation of color-causing compounds, such as tannins, helps to improve the visual clarity of water, making it more appealing to consumers.

Advanced Oxidation Processes (AOP)

Ozone can be combined with other chemicals, such as hydrogen peroxide (H₂O₂), to create an advanced oxidation process (AOP). This process is highly effective at treating trace organic compounds, which may not be fully removed by conventional treatment methods. The O₃/H₂O₂ process, also known as peroxone, is an example of AOP that generates hydroxyl radicals, which are even more powerful oxidants than ozone alone.

AOPs are especially useful in treating compounds of emerging concern (CECs), such as pharmaceuticals, endocrine-disrupting chemicals (EDCs), and personal care products (PCPs), which are increasingly found in water supplies. These trace contaminants are resistant to standard disinfection processes, but AOPs, with their ability to generate hydroxyl radicals, can effectively degrade these pollutants.

Explanation of O₃/H₂O₂ and Peroxone Processes

The O₃/H₂O₂ process involves the addition of hydrogen peroxide to ozone-treated water to accelerate the formation of hydroxyl radicals. These radicals then react with the contaminants in the water, breaking down complex organic molecules into smaller, less harmful substances. This process is particularly useful in potable reuse applications, where the removal of trace organics is critical for meeting water quality standards.

In some applications, the presence of natural organic matter in the water can lead to the natural formation of hydroxyl radicals during ozone decomposition, which reduces the need for additional hydrogen peroxide. This makes ozone-based advanced oxidation processes both efficient and cost-effective for water treatment.

Benefits of AOP for Treating Trace Organic Compounds and Improving Filtration

The use of advanced oxidation processes provides significant benefits for water treatment facilities, particularly when it comes to removing trace organic compounds. These compounds, which include pharmaceutical residues, pesticides, and personal care products, are often found in low concentrations but can pose long-term risks to human health and the environment. AOPs help to degrade these substances into less harmful forms, improving the overall safety of treated water.

In addition, AOPs can enhance the performance of downstream filtration systems. By breaking down organic matter, these processes improve the efficiency of biologically active filtration systems, such as biological activated carbon (BAC), by reducing the load of organic contaminants that would otherwise interfere with filtration. This synergy between AOP and biological filtration helps to optimize water treatment processes and ensures a higher quality of treated water.

Ozone Demand and Decay>

When ozone is introduced into water, there is an immediate demand as it reacts with constituents in the water. This initial ozone demand is influenced by various factors such as the presence of organic compounds, metals, and other readily oxidizable substances. The demand represents the amount of ozone that must be consumed before a measurable residual concentration can be detected.

Once the initial demand is satisfied, the remaining ozone begins to decay over time. Ozone decay is a natural process influenced by factors like water quality, pH, temperature, and alkalinity. For example, warmer temperatures accelerate ozone decomposition, while higher alkalinity can slow it down. Understanding these factors is essential for operators to maintain effective ozone treatment, as the goal is to balance the ozone dose to meet treatment objectives while minimizing waste.

Ozone decay is also influenced by Total Organic Carbon (TOC) in the water, which can increase demand, and other water quality parameters. Operators should carefully monitor these factors and adjust ozone doses to ensure effective disinfection and oxidation. The decay of ozone is a first-order reaction, meaning the concentration of ozone decreases exponentially over time. The formula for ozone decay can be expressed as:

• Ct = C0 × e^(-kt)

Where:

• C₀ is the initial ozone concentration,
• Cₜ is the concentration at time t,
• k is the decay coefficient.

This formula helps operators predict how quickly ozone will decay in a given water quality scenario and adjust dosing as needed.

Process Configurations and Equipment

Ozone treatment systems rely on several configurations and specialized equipment to efficiently generate, deliver, and apply ozone in water. These configurations include different types of feed gas systems, ozone generators, injection methods, and contactors.

Feed Gas Supply Systems

Ozone generation requires a high-purity oxygen feed gas. The type of feed gas supply system used has a significant impact on the performance and efficiency of the ozone treatment process. The main types of feed gas systems include:

• Air-fed systems: Ambient air is compressed, dried, and used as the feed gas. These systems are generally less efficient because of the need to remove moisture and nitrogen from the air, but they can be cost-effective for small-scale applications.
• Liquid oxygen (LOX) systems: LOX is vaporized and used as a pure oxygen source for ozone generation. LOX-fed systems are more efficient and reliable, particularly in large-scale operations, as they eliminate the need for extensive air drying and filtration.
• Pressure swing adsorption (PSA) and vacuum pressure swing adsorption (VPSA) systems: These systems generate high-purity oxygen onsite by removing moisture and nitrogen from ambient air through an adsorption process. They are widely used for their ability to produce oxygen efficiently and continuously for ozone generation.

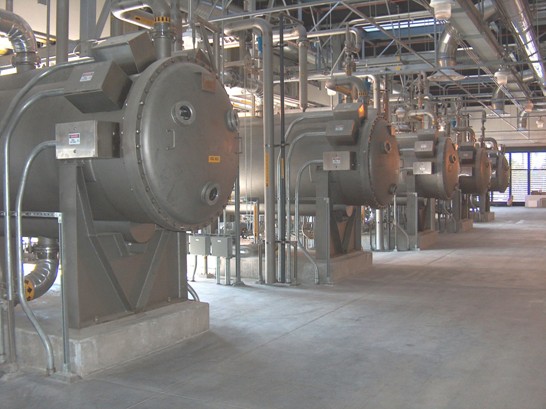

Ozone Generation (Corona Discharge Process)

Ozone is typically generated using a corona discharge process, where oxygen-containing gas is passed through a high-voltage electrical field. The energy from the electrical discharge splits oxygen molecules (O₂), which then combine with other oxygen atoms to form ozone (O₃).

The design of the ozone generator, including the discharge gap between electrodes and the materials used in the generator (such as dielectrics), influences the generator’s efficiency. To optimize performance, the feed gas is cooled, and moisture is removed to prevent damage to the generator and enhance ozone production. Corona discharge generators are commonly used in water treatment due to their reliability and scalability.

Ozone Injection Methods

Once ozone is generated, it must be effectively dissolved into the process water. Several ozone injection methods are employed depending on the application:

• Direct injection: Ozone is injected directly into the water using a venturi injector or nozzle. This method uses the pressure differential created by the venturi effect to enhance ozone transfer efficiency.
• Bubble-diffuser injection: In this method, ozone is introduced at the bottom of a chamber through porous diffusers, creating fine bubbles that dissolve into the water as they rise. This method is suitable for high-contact time applications but requires regular maintenance of diffusers to ensure efficiency.
• Sidestream injection: A portion of the process water is diverted, ozonated, and then reintroduced into the main water stream. Sidestream injection is often combined with venturi injectors and is advantageous because it reduces maintenance needs compared to bubble-diffuser systems.
• Turbine mixing: Ozone is mixed into the water using high-speed turbines, which create fine bubbles and enhance ozone transfer efficiency.

Contactors and Mixing Configurations for Efficient Ozone Application

Ozone contactors are vessels where ozone is mixed with water, allowing it to react with contaminants. The design and configuration of contactors are critical to ensuring optimal ozone transfer and achieving disinfection or oxidation goals.

• Over-under and serpentine contactors: These configurations promote longer contact times by forcing water to flow through a series of chambers or baffles. The baffling factor, which measures how well water is mixed, is an important consideration for disinfection applications. Systems with higher baffling factors (closer to 1.0) are more efficient at pathogen inactivation.
• Countercurrent and concurrent contactors: In countercurrent systems, ozone gas flows in the opposite direction to the water flow, while in concurrent systems, ozone and water flow in the same direction. Countercurrent contactors are more efficient in terms of ozone transfer because they maintain a higher concentration gradient between the gas and water.

Each configuration and mixing method is chosen based on the specific needs of the water treatment plant, including water quality, treatment objectives, and operational constraints.

Practical Considerations for System Design

When designing an ozone system, it is essential to consider factors such as water temperature, pH, and the specific contaminants present. These factors directly influence the ozone demand, decay rates, and the efficiency of ozone transfer into the water. A well-designed system will optimize these variables to ensure that the ozone is effectively used for both disinfection and oxidation, minimizing wastage and operational costs.

Dissolved Ozone Monitoring

Continuous monitoring of dissolved ozone concentrations is essential for ensuring system compliance and achieving disinfection goals. Monitoring systems are designed to track concentration-time (CT) values, which are critical for determining the inactivation levels of pathogens. CT values represent the concentration of ozone multiplied by the contact time with water, and they are key to measuring the log removal value (LRV) for pathogens like Giardia, Cryptosporidium, and viruses.

To achieve reliable disinfection, multiple dissolved ozone sensors are strategically placed throughout the ozone contactor. These sensors provide real-time data on ozone residuals, which are used to calculate CT values. The data from these sensors is used to ensure the system is meeting the required LRV and regulatory standards, particularly for potable reuse applications. Systems with fewer ozone sensors may underestimate the CT value, leading to higher ozone doses than necessary to achieve compliance.

Indigo Method for Verifying Ozone Residuals

The Indigo method is a widely used colorimetric technique for verifying ozone residuals in water. This method involves using an indigo dye solution that reacts with ozone, causing a color change that can be measured spectrophotometrically. The degree of color change is proportional to the ozone concentration in the water sample.

Operators use the Indigo method as a validation tool for continuous online ozone monitors. It provides a reliable way to ensure the accuracy of dissolved ozone measurements by comparing the results of grab samples analyzed via the Indigo method to the online sensor readings. This verification process is critical for maintaining compliance with regulatory requirements and preventing under- or over-dosing of ozone.

Best Practices for Maintaining Sensor Accuracy and Calibration

To ensure consistent and accurate performance, dissolved ozone sensors must undergo regular maintenance and calibration. Preventative maintenance includes cleaning the sensors to prevent fouling from biofilms, scaling, or other deposits that can degrade sensor performance. Regular calibration of sensors against a standard reference method, like the Indigo method, helps maintain the accuracy of ozone measurements.

Best practices for sensor maintenance include:

• Routine cleaning to prevent the build-up of contaminants on sensor surfaces.
• Regular calibration checks, especially after prolonged periods of use or when significant changes in water quality are detected.
• Replacing worn or damaged sensor components to ensure optimal performance.

In addition to maintenance, continuous system diagnostics help detect sensor drift or malfunctions before they affect treatment performance.

System Performance Monitoring

Maintaining optimal ozone system performance requires close monitoring of several key performance indicators (KPIs). These include:

• Ozone dose: The amount of ozone applied per unit volume of water.
• Transfer efficiency: The percentage of ozone that dissolves into the water versus what is lost as off-gas.
• Ozone residual: The concentration of dissolved ozone in the water after the initial demand is satisfied.

These KPIs are used to evaluate the system’s efficiency and to make adjustments as necessary to maintain effective disinfection and oxidation while minimizing operational costs. Continuous monitoring of these parameters ensures that the system is meeting treatment goals while optimizing ozone generation and application.

Regular Maintenance of Injectors, Diffusers, and Destruct Units

The reliable operation of ozone systems depends on the proper maintenance of critical components such as injectors, diffusers, and ozone destruct units.

• Injectors and Diffusers: These components are responsible for introducing ozone into the process water and maximizing its dissolution. Regular inspection and cleaning of injectors and diffusers are necessary to ensure that they are free from blockages or damage that could reduce ozone transfer efficiency. Diffusers, in particular, require attention to prevent clogging or cracking, which can decrease the size and uniformity of the ozone bubbles, leading to reduced treatment efficiency.
• Ozone Destruct Units: Destruct units remove excess ozone gas from the off-gas stream to prevent it from escaping into the environment. These units use catalytic materials to break down ozone into oxygen. Over time, the catalysts in ozone destruct units can degrade or become contaminated, reducing their effectiveness. Regular maintenance includes inspecting the catalyst bed for fouling, replacing spent catalyst materials, and ensuring that the unit is operating at the correct temperature for optimal ozone destruction.

By maintaining these components properly, operators can extend the lifespan of the equipment and maintain system efficiency, reducing the risk of operational downtime.

Hazards Associated with Ozone Use

Ozone, while highly effective as a disinfectant and oxidant, presents several safety risks that must be carefully managed in water treatment facilities. Exposure to both oxygen and ozone gases can pose health risks to operators, while the high-voltage equipment used in ozone generation introduces electrical hazards.

Oxygen and ozone gas exposure risks: Ozone is a highly reactive gas and is classified as a respiratory irritant. At concentrations above 0.1 ppm (the permissible exposure limit set by OSHA for an 8-hour workday), ozone can cause irritation of the eyes, throat, and respiratory tract. Extended exposure or exposure to higher concentrations can lead to more severe respiratory conditions and, in extreme cases, can be fatal.

Since oxygen is used in ozone generation, leaks in oxygen systems also pose risks. Oxygen can increase the risk of combustion when in contact with flammable materials. Ensuring the correct handling and storage of oxygen and ozone gases is critical to preventing dangerous accidents in the plant.

Oxygen and Ozone Gas Exposure Risks

Exposure to oxygen and ozone gases is a primary concern for operators working with ozone systems. Oxygen leaks in the storage or feed gas system can create environments with elevated oxygen levels, increasing the risk of fire or explosion. Oxygen-enriched environments reduce the ignition point of flammable materials, meaning that even non-combustible materials can ignite in the presence of high oxygen levels.

Ozone gas leaks present direct health risks, as ozone is harmful to human health when inhaled. Exposure to ozone concentrations higher than 0.3 ppm (short-term exposure limit) can result in more severe symptoms, including chest pain, shortness of breath, and lung damage. Systems are equipped with ozone gas detectors to monitor and alert operators to leaks, ensuring rapid responses to any exposure incidents.

Electrical Hazards from High-Voltage Equipment

Ozone is generated through the corona discharge process, which requires high-voltage electrical equipment. This equipment introduces potential hazards, including electric shock and arc flash. Operators working near ozone generators must follow strict safety protocols, including the lockout/tagout (LOTO) procedure, which ensures that electrical systems are safely de-energized before any maintenance or repair work is performed.

Personnel must be trained in handling high-voltage equipment and should use proper personal protective equipment (PPE), including insulated gloves and protective eyewear, when working near ozone generators or their power supply systems.

Cryogenic Safety Concerns in LOX Systems

For systems using liquid oxygen (LOX) as a feed gas, additional safety measures are necessary to manage the hazards associated with cryogenic liquids. Liquid oxygen is stored at extremely low temperatures (below -183°C or -297°F), which can cause severe frostbite or cold burns upon contact with skin. LOX storage systems require special safety procedures, including the use of insulated gloves, face shields, and other cryogenic PPE when handling liquid oxygen.

Cryogenic systems also have pressure relief valves to prevent dangerous pressure build-up due to the vaporization of LOX into gaseous oxygen. Routine inspections of these valves are critical to ensure they are functioning properly and prevent pressure-related accidents.

Ozone Gas Leaks and Emergency Response

Detecting and managing ozone gas leaks is critical to maintaining a safe working environment. Facilities are equipped with ambient ozone monitors that continuously measure ozone concentrations in the air, particularly in low-lying areas where ozone gas tends to accumulate. These monitors are configured with alarm systems that trigger warnings if ozone levels exceed safe thresholds.

Operators are trained to use portable ozone detectors for checking localized areas where leaks are suspected. In the event of a significant ozone leak, the system automatically shuts down to prevent further exposure. Emergency response procedures include:

• Immediate evacuation of the affected area.
• Use of respirators for personnel who must remain in the vicinity of the leak.
• Engaging the emergency stop (E-stop) system to deactivate the ozone generator and halt ozone production.

Methods for Detecting and Handling Ozone Leaks

Ozone leaks can be identified using several methods:

• Portable ozone detectors: These handheld devices provide real-time measurements of ozone concentration and help pinpoint the source of a leak.
• Soap solution test: A weak soap solution can be sprayed onto potential leak areas. If bubbles form, it indicates the presence of an ozone leak.
• Potassium iodide (KI) test: A chemical test using a potassium iodide solution can detect ozone by changing color upon contact. A white rag soaked in a KI solution turns brownish in the presence of ozone, offering a simple yet effective way to confirm leaks.

Once a leak is detected, operators should immediately address it by tightening connections, replacing gaskets, or repairing damaged components. Routine inspections of ozone system seals and gaskets help prevent leaks before they occur.

Safety Equipment (Ambient Monitors, Personal Protective Equipment)

Safety equipment plays a vital role in ozone system operations. Ambient ozone monitors are installed in critical locations around the ozone system to detect and measure ozone gas levels in real-time. These monitors are calibrated to trigger alarms if ozone levels exceed the safe operating threshold of 0.1 ppm for prolonged exposure or 0.3 ppm for short-term exposure.

Operators are also required to wear personal protective equipment (PPE) when working with ozone systems. This includes:

• Respiratory protection: In areas where ozone gas exposure is possible, respirators with ozone-rated filters must be used.
• Eye protection: Ozone exposure can cause irritation to the eyes, so safety goggles or face shields are essential.
• Gloves and protective clothing: Gloves and other protective garments help protect the skin from exposure to cryogenic liquids and ozone gas.

Regulatory Compliance

Ozone system operations are subject to strict Occupational Safety and Health Administration (OSHA) standards, including exposure limits and monitoring requirements. OSHA’s permissible exposure limit (PEL) for ozone is 0.1 ppm over an 8-hour work shift, while the short-term exposure limit (STEL) is 0.3 ppm over a 15-minute period.

Compliance with these standards is achieved through regular system monitoring, sensor calibration, and maintenance of safety equipment. Operators must also receive annual safety training to ensure they understand and can implement all necessary safety protocols. Emergency response drills are conducted regularly to prepare staff for ozone leaks and other safety incidents.

Routine Safety Training and System Shutdown Procedures

To maintain a safe working environment, operators undergo routine safety training that covers:

• Proper handling of high-voltage equipment and cryogenic systems.
• Emergency shutdown procedures and safe evacuation routes in the event of an ozone leak.
• The use of PPE, ozone detection equipment, and emergency response protocols.

In the event of equipment malfunctions, ozone leaks, or other safety concerns, operators must follow system shutdown procedures to halt ozone production and minimize risks. These procedures ensure that ozone system components are safely deactivated, and personnel are not exposed to harmful gases.

Addressing System Failures

Ozone systems, like all water treatment technologies, may experience failures that require immediate attention to maintain operational efficiency and ensure safety. Understanding the causes of common system failures and knowing how to troubleshoot them is essential for operators to minimize downtime and avoid costly repairs.

Failures in ozone systems typically stem from issues with feed gas supply, ozone generation, or the destruction of excess ozone gas. Operators must be prepared to identify these issues and implement corrective actions quickly to prevent extended system outages or decreased treatment effectiveness.

Troubleshooting Feed Gas Issues

The performance of the ozone generation system heavily relies on the quality and supply of the feed gas. Several issues can arise with the feed gas system that can impact ozone generation:

Low Gas Flow: Ozone systems require a consistent flow of oxygen or air to generate ozone. Low gas flow can be caused by issues with compressors, oxygen generators (LOX, PSA, or VPSA systems), or blockages in the feed gas lines. To troubleshoot this issue, operators should:

• Check the oxygen feed system to ensure it is operating within the required pressure and flow parameters.
• Inspect filters and lines for clogs or leaks, which can restrict gas flow.
• Verify that compressors and blowers are functioning correctly.

High Moisture Content in Feed Gas: Moisture in the feed gas can severely reduce the efficiency of ozone generation and cause damage to the ozone generator. This issue is typically resolved by checking the air dryers or desiccant systems, ensuring they are properly removing moisture from the feed gas. Regular maintenance of these drying systems is crucial to prevent moisture-related issues.

Oxygen Purity Issues: If the purity of oxygen in the feed gas drops, it can reduce ozone production efficiency. This may occur due to malfunctioning oxygen generation systems (such as PSA or VPSA systems) or contamination in the oxygen storage tanks. Operators should regularly check oxygen purity levels and inspect the equipment for leaks or faulty components.

Ozone Generator Problems

The ozone generator itself is a critical component that can experience several types of failures, primarily related to electrical or cooling system malfunctions:

Electrical Failures: Since ozone generators use high-voltage electrical discharges to produce ozone, any interruption in power supply or damage to the electrical components can halt ozone production. Common electrical problems include:

• Power surges: These can damage the ozone generator’s control systems or blow fuses. To troubleshoot, operators should inspect the generator’s power source and ensure the system’s voltage regulator is functioning correctly.
• Arc damage: Over time, electrical arcing can cause wear on the generator’s dielectric materials, leading to cracks or malfunctions. If this occurs, the dielectrics need to be inspected and replaced.

Cooling System Failures: Ozone generators must be kept cool during operation to maintain efficiency and prevent overheating. If the cooling system fails, the generator can overheat, leading to system shutdowns or permanent damage. Operators should monitor cooling water or air flow to ensure the system is within operational temperature limits. Blockages in cooling lines or a malfunctioning heat exchanger are common issues that require regular inspection and maintenance.

Destruct Unit Failures

Ozone destruct units are responsible for safely converting excess ozone gas back into oxygen before it is released into the atmosphere. If the destruct unit fails, ozone gas can accumulate to dangerous levels, posing health risks to operators and increasing the risk of environmental ozone release.

Low Gas Flow in Destruct System: Low gas flow through the destruct unit can indicate clogging in the catalyst media or a failure of the blower that pulls the ozone gas through the system. Operators should:

• Check the destruct blower for proper operation and ensure that the fan is moving at the correct speed.
• Inspect the catalyst bed for signs of fouling or blockage, and replace it if necessary.

High Ozone Concentration in Exhaust: If the ozone destruct unit is not functioning correctly, the exhaust gas may still contain ozone, which can be dangerous. A high ozone concentration in the exhaust can result from issues with the catalyst, such as media fouling or moisture contamination. Operators should inspect the catalyst for discoloration or debris and replace it if necessary. Regular monitoring of the destruct unit’s exhaust with ambient ozone sensors helps to quickly identify when the destruct unit is underperforming.

Common Operational Issues

Apart from failures in the main components, several operational issues can arise that affect the performance of the ozone system:

Low Ozone Transfer Efficiency: This occurs when the transfer of ozone gas into the water is inefficient, resulting in higher operational costs and reduced treatment effectiveness. Causes of low transfer efficiency include:

• Clogged or damaged injectors or diffusers, which reduce the amount of ozone being dissolved into the water.
• Incorrect water flow or pressure through the contactor, which can reduce the mixing and dissolution of ozone.

To troubleshoot, operators should inspect injectors and diffusers regularly and monitor the water flow and pressure in the system to ensure they are within the design parameters.

High Temperature Alarms: Ozone generators are sensitive to temperature, and overheating can trigger system alarms and shutdowns. High-temperature issues may arise from cooling system failures or excessive ambient heat in the generator room. Operators should ensure that the cooling system is functioning and that there is adequate ventilation in the generator area.

Corrective Actions

When any of the above issues are identified, swift corrective actions are required to prevent further damage or inefficiency in the system. The following steps are typically taken to restore proper system function:

Low Ozone Transfer Efficiency:

• Clean or replace injectors and diffusers to improve gas transfer.
• Adjust water flow or pressure to optimize mixing and ozone dissolution.

Ozone Generator Electrical or Cooling Failures:

• Inspect and repair electrical components such as fuses, transformers, or dielectrics.
• Clean or unclog cooling lines and check the flow rate to ensure the generator is staying within the desired temperature range.

Feed Gas or Destruct Unit Failures:

• Check feed gas purity, pressure, and flow and adjust or repair as needed.
• Inspect and replace catalyst media in the destruct unit if necessary.

By maintaining a proactive approach to troubleshooting and regularly inspecting key components, operators can keep ozone systems running efficiently and safely.

Ozone Dose and Demand Calculations

The performance of an ozone system is highly dependent on the ozone dose applied to the water and the ozone demand of the water itself. Ozone dose refers to the amount of ozone (in mg/L) that is introduced into the water, while ozone demand is the amount of ozone consumed by the various organic and inorganic materials in the water before any residual ozone can be measured.

The formula for calculating the ozone dose is as follows:

• Ozone Dose (mg/L) = Water Flow Rate (m³/hr) Ozone Applied (g/hr)×1000

Where:

• Ozone Applied is the amount of ozone generated and injected into the water.
• Water Flow Rate is the rate of water passing through the ozone contactor.

Once the ozone demand has been satisfied (i.e., ozone has reacted with all ozone-demanding substances), the residual ozone can be measured. The ozone dose must be carefully controlled to meet disinfection and oxidation goals while ensuring that any excess ozone does not go to waste.

Practical Examples for Calculating CT and LRV

In water treatment, the effectiveness of ozone disinfection is measured using CT values, which represent the product of the concentration of ozone (C) in mg/L and the contact time (T) in minutes. The CT value is used to determine the log removal value (LRV) of specific pathogens, which indicates the percentage reduction in the concentration of these organisms.

The formula for calculating CT is:

• CT = C × T

Where:

• C is the ozone residual concentration (mg/L).
• T is the contact time (minutes).

For example, to achieve a 3-log (99.9%) removal of Giardia lamblia, a specific CT value is required. If the ozone residual concentration is 1.5 mg/L and the water is exposed to ozone for 10 minutes, the CT value would be:

• CT = 1.5mg/L × 10 minutes = 15mg/L

Operators can use standard regulatory CT tables to determine whether the calculated CT value meets the disinfection goals for the target pathogens.

Hydraulic Detention Time and Ozone Decay

The hydraulic detention time (HDT) is the amount of time water spends in the ozone contactor, and it is a key factor in determining the effectiveness of the disinfection process. HDT is calculated by dividing the volume of the contactor by the flow rate of the water.

The formula is:

• HDT = Flow Rate (m³/hr) Volume of Contact Chamber (m³)

The longer the hydraulic detention time, the more time ozone has to react with contaminants in the water. However, operators must account for ozone decay, which is the natural breakdown of ozone over time. Ozone decay is influenced by factors such as temperature, pH, and the presence of ozone-demanding substances. As ozone decays, its concentration in the water decreases, and thus the CT value also decreases over time.

Ozone Decay Coefficient and Its Role in System Monitoring

The rate of ozone decay is characterized by the ozone decay coefficient (k), which represents the speed at which ozone breaks down in water. The decay of ozone follows first-order kinetics, meaning that the concentration of ozone decreases exponentially over time. The formula for ozone decay is:

• Ct =C0 × e^(-kt)

Where:

• C₀ is the initial ozone concentration.
• Cₜ is the ozone concentration at time t.
• k is the ozone decay coefficient (1/min).
• t is the time elapsed.

By monitoring the ozone decay coefficient, operators can predict how quickly ozone will be consumed and adjust the ozone dose accordingly to maintain the required residual ozone levels for disinfection. Regular monitoring of the decay coefficient allows for real-time adjustments to ensure optimal performance, especially when water quality conditions change.
