1.1 Purpose and Function of Membrane Filtration

Membrane filtration is a process widely used in both drinking water and wastewater treatment to remove suspended solids, bacteria, protozoa, and other contaminants from the feed water. The filtration process utilizes semipermeable membranes, typically made of synthetic materials, that allow certain components of the feed solution to pass through while blocking others. These membranes are selectively permeable, which means they permit the flow of smaller molecules, such as water, while retaining larger particles, bacteria, or dissolved solids depending on the size of their pores.

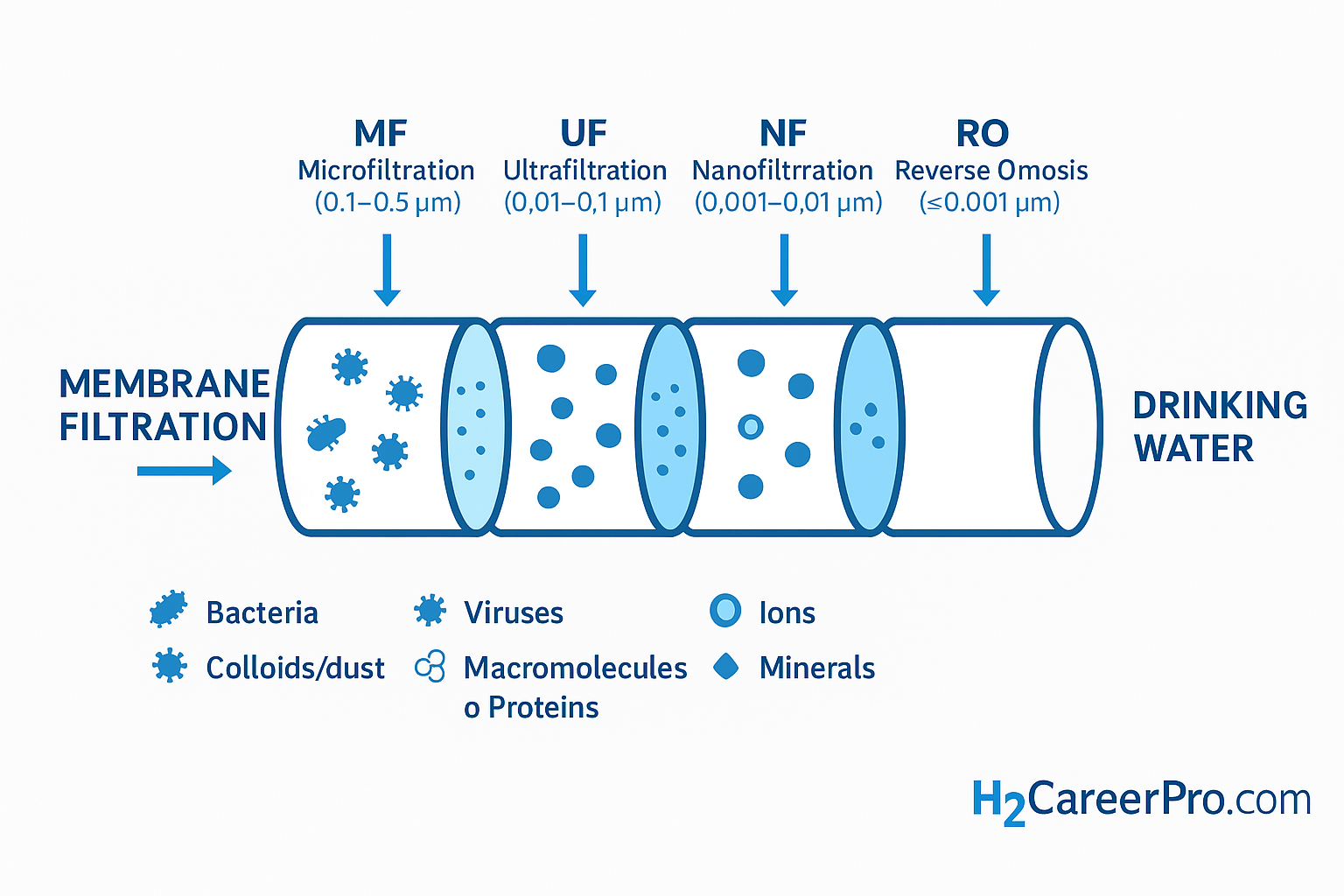

The primary factor that determines which components pass through the membrane is its pore size. Membranes with larger pores allow the passage of larger particles, while those with smaller pores filter out even finer contaminants. The pressure needed to push water through the membrane increases as the pore size decreases, making the process more energy-intensive but also more effective at removing smaller contaminants. There are four main types of membrane filtration processes, classified based on pore size:

• Microfiltration (MF): Pore sizes between 0.1 and 0.45 microns, typically used to remove large particles and suspended solids.
• Ultrafiltration (UF): Pore sizes from 0.01 to 0.1 microns, effective at filtering bacteria and some viruses.
• Nanofiltration (NF): Smaller pores, targeting specific contaminants like salts.
• Reverse Osmosis (RO): The smallest pore size, capable of removing dissolved salts and organic molecules.

Membrane filtration systems serve various purposes, from pre-treatment stages for desalination to removing pathogens such as Cryptosporidium and Giardia. Depending on the specific application, different membranes are used to achieve the desired level of filtration.

Membrane filtration not only reduces the presence of harmful pathogens and contaminants but also helps to improve water clarity by removing suspended solids. This process is vital for ensuring that water meets safety standards for potable use or further treatment.

1.2 Types of Membranes and Their Roles

The types of membranes used in filtration processes vary according to the size of particles being removed and the type of treatment required. Here’s a closer look at the main types of membranes and their specific functions:

• Microfiltration membranes: with pore sizes between 0.1 and 0.45 microns, are designed to remove large particles, including suspended solids, algae, and bacteria. These membranes are often used in drinking water treatment to reduce turbidity and as a pre-treatment for reverse osmosis systems. Microfiltration is highly effective at removing protozoa like Cryptosporidium and Giardia, which are relatively large compared to the membrane pore size. However, MF does not typically remove dissolved salts or smaller contaminants like viruses.
• Ultrafiltration membranes: have smaller pore sizes, between 0.01 and 0.1 microns, making them suitable for removing bacteria and some viruses. UF is commonly used as an intermediate step in water treatment processes, particularly as a pre-treatment for nanofiltration (NF) or reverse osmosis (RO). In wastewater treatment, UF helps improve the quality of effluent water by removing suspended particles, reducing turbidity, and eliminating bacteria.
• Nanofiltration and Reverse Osmosis membranes: provide the finest filtration. NF membranes remove smaller organic molecules and divalent ions (such as calcium and magnesium), while RO membranes have the smallest pore sizes, effectively blocking dissolved salts and producing demineralized water. These membranes are commonly used in desalination and in water reuse applications where removing dissolved salts and trace contaminants is essential.

Comparative Example: To illustrate the filtration capacity of these membranes, consider the size of a human hair, which is approximately 200 microns in diameter. In comparison:

• MF membranes have pore sizes 400 to 2,000 times smaller.
• UF membranes filter particles 2,000 to 20,000 times smaller than a human hair.

This comparison highlights the significant difference in filtration capability, where MF and UF membranes provide increasingly fine filtration to remove contaminants from water.

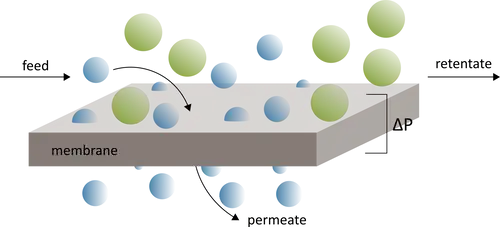

Membrane filtration systems operate through two primary filtration mechanisms: dead-end filtration and cross-flow filtration. Each process involves distinct methods of handling the feed water, concentrate, and filtrate. The choice between these mechanisms depends on the type of membrane system in use and the desired outcomes.

2.1 Understanding Filtration Mechanisms

2.1.1 Dead-End Filtration

Dead-end filtration is a process where all of the feed water is forced through the membrane, leaving no concentrate or waste stream. This type of filtration is commonly used in microfiltration (MF) and ultrafiltration (UF) systems, where the pore size of the membrane allows for effective removal of large suspended particles and bacteria.

In dead-end filtration, all the contaminants are captured on the surface of the membrane, forming a layer of particles, often referred to as a “cake layer.” As this layer thickens, it increases the pressure required to maintain a consistent flow of filtrate. This accumulation can eventually lead to fouling, which must be addressed through regular backwashing or chemical cleaning.

Key Concept: In dead-end filtration, the entire volume of the feed water passes through the membrane, producing only filtrate with no reject stream. It’s a simpler system but is prone to more rapid fouling due to the buildup of particles on the membrane surface.

2.1.2 Cross-Flow Filtration

Cross-flow filtration is a more complex process used in nanofiltration (NF) and reverse osmosis (RO) systems. In this method, only a fraction of the feed water is filtered through the membrane as permeate, while the remainder is rejected as concentrate (waste stream). This waste stream, often rich in salts and other contaminants, is continuously flushed away, helping to reduce the rate of fouling on the membrane surface.

Cross-flow filtration is advantageous for high-concentration feed waters, as it maintains a cleaner membrane surface by sweeping away particles. The system requires higher operational pressures but is more effective in desalination and the removal of dissolved salts and other fine particles.

Key Concept: Cross-flow filtration splits the feed water into two streams—filtrate (clean water) and concentrate (waste)—and is highly effective at preventing rapid fouling in applications like desalination.

2.2 Membrane Types and Their Materials

Membranes are constructed from a variety of materials, each chosen for their durability, permeability, and chemical resistance. The material of the membrane impacts its performance, longevity, and cleaning requirements, making it a critical factor in the design and operation of filtration systems.

2.2.1 Polymeric Membranes

Polymeric membranes are the most common type used in water treatment applications, due to their relatively low cost and high flexibility. Some of the most widely used polymeric membranes include:

• Polyethersulfone (PES): Known for its high permeability and chemical resistance, PES membranes are ideal for water treatment processes requiring frequent cleaning.
• Polyvinylidene Fluoride (PVDF): PVDF membranes offer excellent resistance to chlorine and other aggressive cleaning chemicals, making them suitable for applications where long membrane life and frequent cleaning cycles are necessary.
• Polytetrafluoroethylene (PTFE or Teflon): PTFE membranes are highly resistant to a wide range of chemicals and have exceptional durability. They are often used in extreme conditions where chemical exposure is high.

Instructional Tip: Operators should familiarize themselves with the type of polymeric membrane used in their system. Understanding the material’s chemical resistance properties will help in selecting the appropriate cleaning agents and procedures, ensuring long-term membrane performance.

2.2.2 Ceramic Membranes

Ceramic membranes, made from materials such as silicon carbide and zirconium, offer superior durability and chemical resistance compared to their polymeric counterparts. These membranes are less prone to degradation over time and can withstand harsh cleaning regimens, making them a suitable option for applications involving aggressive feed waters or high fouling rates.

The primary advantage of ceramic membranes is their long lifespan, which can extend for decades with proper maintenance. However, ceramic membranes are typically more expensive than polymeric options, which may limit their use in cost-sensitive applications.

Instructional Tip: Ceramic membranes are ideal for high-demand applications where long-term durability and high chemical resistance are necessary. While they have a higher upfront cost, their extended lifespan can make them more economical in the long run, especially in harsh environments.

Summary of Section 2: Key Processes and Materials

In summary, the membrane filtration process is governed by the choice between dead-end and cross-flow filtration, each suited to different water treatment scenarios. Additionally, the type of membrane material—whether polymeric or ceramic—plays a significant role in the system’s performance, cleaning requirements, and overall durability. Operators must understand the mechanisms and materials involved to maintain system efficiency and prolong membrane life.

Membrane filtration systems are versatile and are applied in various stages of both drinking water and wastewater treatment. Their ability to remove suspended solids, pathogens, and even dissolved salts makes them integral to achieving high water quality. In this section, we’ll explore the most common uses of Microfiltration (MF) and Ultrafiltration (UF) systems, and delve into how membrane systems play a role in pathogen removal.

3.1 Common Uses of MF and UF

3.1.1 Pre-Treatment for Reverse Osmosis (RO) Systems

One of the most widespread uses of MF and UF membrane systems is as a pre-treatment step for Reverse Osmosis (RO) systems. RO membranes are highly sensitive to fouling by particles and organic material in feed water, so MF and UF are used to remove these contaminants before the water reaches the RO stage. By filtering out suspended solids, bacteria, and protozoa like Cryptosporidium and Giardia lamblia, MF and UF systems help protect the RO membrane and improve its lifespan and performance.

Practical Example: In seawater desalination plants, UF membranes are commonly installed before RO units to remove organic matter and fine particles, ensuring the RO process operates efficiently and with less frequent cleaning.

3.1.2 Suspended Solids Removal in Wastewater Treatment

MF and UF membranes are also commonly used in wastewater treatment for the removal of suspended solids and the reduction of turbidity. In wastewater systems, the membranes act as a barrier to larger particles, while allowing treated water to pass through for further processing. The use of membrane filtration in wastewater treatment improves the quality of effluent water, making it suitable for discharge or reuse.

The removal of suspended solids is crucial in advanced wastewater treatment, as it reduces the load on downstream processes and helps to meet regulatory standards for discharge. Membrane systems are particularly effective in tertiary treatment stages, where further polishing of the water is required before it can be reused or released into the environment.

Key Benefit: Membrane filtration enhances the overall efficiency of wastewater treatment plants by improving water clarity and reducing suspended solids, which are a major source of contamination in treated effluent.

3.2 Understanding Pathogen Removal

3.2.1 Protozoa Removal

Both Microfiltration (MF) and Ultrafiltration (UF) systems are highly effective at removing protozoa from water, achieving a log removal value (LRV) of greater than 4.0 log for pathogens such as Cryptosporidium and Giardia lamblia. This means that over 99.99% of protozoa are removed during the filtration process, making these membrane systems essential for producing safe drinking water.

The ability to remove protozoa is especially important for systems where there is a risk of surface water contamination or where regulations require stringent pathogen removal. The fine pores of MF and UF membranes are capable of blocking these larger organisms, providing a physical barrier that ensures the water meets microbial safety standards.

Practical Example: In drinking water treatment, MF and UF systems are often used as a critical barrier against protozoan parasites, providing a reliable means of protecting public health.

3.2.2 Virus Removal

While MF and UF systems are capable of removing some viruses, regulatory credit is typically not given for virus removal because the integrity tests used for these systems do not fully account for virus-sized particles. Although UF membranes can remove some viruses due to their small pore size, virus removal efficiency is not as high as for protozoa.

In most regulatory frameworks, virus removal is instead credited to disinfection processes, such as chlorination or UV treatment, which are more effective at inactivating viruses. Nonetheless, the contribution of UF membranes to reducing virus loads is an added benefit, especially in conjunction with other disinfection methods.

Practical Example: In water reuse applications, UF membranes are often paired with disinfection processes to ensure the removal of both protozoa and viruses, providing a comprehensive approach to pathogen control.

Summary of Section 3: Applications in Water Treatment

Membrane filtration systems, particularly MF and UF, are indispensable in both drinking water and wastewater treatment. Their ability to serve as pre-treatment for RO systems, remove suspended solids, and act as barriers against protozoa makes them critical for maintaining water quality. Although virus removal is not typically credited to these systems, they still play a valuable role in reducing viral loads when combined with disinfection processes.

Membrane filtration systems, like any complex treatment process, require regular maintenance and monitoring to ensure efficient and long-lasting performance. Without proper upkeep, membranes can suffer from fouling and scaling, leading to reduced system efficiency, increased operational costs, and even permanent damage to the membranes. This section will explore the causes of fouling and scaling, how to prevent these issues, and the methods for cleaning and maintaining membrane systems to ensure optimal operation.

4.1 Membrane Fouling and Scaling

Fouling occurs when particles accumulate on the surface or within the pores of the membrane, creating a resistance to water flow and increasing the energy required to maintain production. There are several types of fouling that operators must be aware of, each with its own specific causes and solutions.

4.1.1 Types of Fouling

• Organic Fouling: Organic matter such as oils, proteins, and humic substances can accumulate on the membrane surface, leading to organic fouling. This type of fouling is common in wastewater treatment, where natural organic matter is prevalent in the feed water. Organic fouling can lead to the formation of a “cake layer” on the membrane surface, significantly reducing flux and increasing transmembrane pressure (TMP).
• Inorganic Fouling (Scaling): Inorganic fouling, also known as scaling, occurs when dissolved salts such as calcium carbonate (CaCO₃), calcium sulfate (CaSO₄), and silica precipitate onto the membrane surface. This type of fouling is more prevalent in systems that treat high-salinity water, such as seawater desalination or brackish water treatment. Scaling can lead to severe reductions in membrane performance, as the crystalline deposits are difficult to remove once they form.
• Silica Scaling: Particularly challenging, silica scaling requires specific cleaning solutions to prevent long-term damage to membranes.
• Biological Fouling (Biofouling): Biological fouling occurs when bacteria and other microorganisms grow on the membrane surface, forming biofilms that block water flow. Biofouling is a major issue in systems that treat raw surface water, as bacteria can easily colonize the membrane under favorable conditions. Once established, biofilms are particularly difficult to remove and can lead to irreversible fouling if not managed properly.
• Particulate Fouling: Particulate fouling is caused by the accumulation of suspended solids, colloidal particles, and other debris on the membrane surface. This type of fouling is typically more prevalent in Microfiltration (MF) and Ultrafiltration (UF) systems, where larger particles are removed from the feed water. Particulate fouling is generally easier to manage through routine backwashing, but it can still lead to increased TMP and reduced system performance if left unchecked.

Key Concept: All types of fouling—whether organic, inorganic, biological, or particulate—lead to an increase in TMP, which is the primary indicator of fouling in a membrane system. Monitoring TMP regularly allows operators to take preventive action before fouling becomes severe.

4.1.2 Causes of Membrane Fouling

The specific causes of fouling can vary depending on the water quality, membrane material, and operational conditions. Common factors that contribute to fouling include:

• High concentrations of suspended solids in the feed water, which increase the risk of particulate fouling.
• Presence of organic materials like oils, which are difficult to remove through filtration alone.
• Microbial contamination in the feed water, which promotes the growth of biofilms.
• High levels of dissolved salts, particularly in seawater or brackish water, which contribute to inorganic scaling.

Operator's Tip: Preventing fouling starts with a thorough understanding of the feed water composition. Conducting regular water quality tests helps operators anticipate potential fouling risks and take corrective action before fouling occurs.

4.1.3 Scaling

Scaling is a specific form of inorganic fouling caused by the precipitation of dissolved salts. The most common scaling compounds include:

• Calcium Carbonate (CaCO₃): A major contributor to scaling, especially in systems treating groundwater or seawater with high calcium content. This type of scaling can be removed using acidic cleaning solutions.
• Calcium Sulfate (CaSO₄): Common in desalination systems, calcium sulfate scaling requires frequent cleaning cycles to manage.
• Silica (SiO₂): Silica scaling is more challenging to remove and typically requires a combination of high-pH cleaning solutions and aggressive cleaning agents.
• Barium and Strontium Salts: While less common, these salts can contribute to scaling, particularly in brackish water applications.

Practical Example: Operators should regularly monitor TMP, and when it rises beyond acceptable limits (typically a 10-15% increase), initiate cleaning with the appropriate acidic solution to remove scaling before it affects overall system performance.

4.2 Cleaning Methods

Regular cleaning is essential for maintaining membrane performance and extending the life of the system. There are several cleaning methods available, ranging from routine backwashing to more intensive Clean-In-Place (CIP) procedures. The choice of cleaning method depends on the type of fouling, the membrane material, and the operational schedule.

4.2.1 Backwashing

Backwashing is a routine cleaning method used primarily in MF and UF systems to dislodge particles from the membrane surface. During backwashing, the flow of water is reversed, pushing accumulated debris off the membrane and flushing it out of the system. This process is usually combined with an air scour, which uses compressed air to create turbulence and help remove fouling particles.

Backwashing is a relatively low-cost and effective cleaning method, but it is most suitable for systems dealing with particulate fouling. It is typically performed at regular intervals based on TMP readings and can be automated in many systems.

Operator's Tip: Backwashing should be performed as soon as TMP begins to rise significantly, indicating the onset of fouling. Waiting too long can lead to more severe fouling that requires chemical cleaning to remove.

4.2.2 Clean-In-Place (CIP) Protocols

For more severe fouling, particularly organic, inorganic, or biological fouling, Clean-In-Place (CIP) procedures are necessary. CIP involves circulating chemical cleaning solutions through the membrane system to dissolve and remove fouling materials. The specific cleaning chemicals used depend on the type of fouling:

• Acidic Cleaning Solutions: Effective for removing inorganic scaling. Common acids include citric acid and hydrochloric acid. Citric acid is typically used for calcium carbonate scaling, while hydrochloric acid is used for more aggressive cleaning.
• Alkaline Cleaning Solutions: These are used to break down organic fouling and biofilms. Sodium hydroxide (NaOH) is a common choice, and may include surfactants to improve its effectiveness.
• Oxidizing Agents: Used for disinfecting membranes and removing biofilms. Sodium hypochlorite (chlorine) is often used, though care must be taken as it can degrade certain membrane materials over time.

The CIP process typically includes these steps:

• Rinsing: The membrane is flushed with clean water to remove loose debris.
• Chemical Circulation: The cleaning solution is circulated through the system at low pressure for 30-60 minutes.
• Soaking: In severe cases, the solution may be left to soak for an extended period.
• Final Rinse: After cleaning, the membrane is flushed with clean water to remove residual chemicals.

Key Concept: Operators should adhere to manufacturer-recommended chemical concentrations and contact times to avoid damaging the membrane. Overuse of strong chemicals, particularly oxidizing agents like chlorine, can degrade the membrane material and shorten its lifespan.

4.3 Preventing Fouling and Scaling

While fouling and scaling are inevitable in membrane systems, several strategies can help minimize their impact:

• Pre-treatment: Installing pre-treatment processes like sedimentation or coagulation reduces the load of suspended solids and organic matter on the membrane.
• Antiscalant Chemicals: These chemicals are injected into the feed water to prevent the formation of crystalline deposits on the membrane surface.
• Biocide Dosing: Periodic dosing of biocides helps prevent biofouling by killing bacteria and microorganisms before they form biofilms.

Practical Example: In high-fouling applications, such as seawater desalination, operators can use antiscalants and pre-treatment processes to prevent scaling, and biocides to reduce biofouling.

Summary of Section 4: Maintenance and Troubleshooting

Membrane fouling and scaling are the primary operational challenges faced by membrane systems. Understanding the types and causes of fouling is crucial for developing effective cleaning and prevention strategies. Regular backwashing, combined with more intensive CIP procedures when necessary, helps maintain system performance. Preventive measures such as pre-treatment, anti-scalant dosing, and biocide applications further reduce the risk of fouling, prolonging the life of the membrane and ensuring efficient operation.

Membrane filtration systems are composed of various components that work together to ensure the effective removal of contaminants from water. The design and configuration of these systems can vary depending on the application, but certain core components are essential to the operation of both Microfiltration (MF) and Ultrafiltration (UF) systems. Understanding the role of these components and the different membrane configurations allows operators to optimize system performance and troubleshoot issues more effectively.

5.1 Key System Components

5.1.1 Membrane Modules

Membrane modules are the heart of any filtration system. They house the membranes and provide the necessary surface area for filtration to occur. There are several types of membrane modules, each designed for specific applications and flow patterns:

• Hollow Fiber Membranes: These are one of the most common configurations in MF and UF systems. Hollow fibers consist of thousands of small tubes (fibers) through which water flows. The feed water can pass either inside-out (from the lumen of the fiber to the outside) or outside-in (from the outside of the fiber to the lumen), depending on the system design. Hollow fiber membranes offer a large surface area for filtration within a compact module.
• Flat Sheet Membranes: These membranes are arranged in flat panels and are used in more specialized applications. The water flows parallel to the membrane surface, allowing for high filtration efficiency. However, flat sheet membranes require more space than hollow fibers, which can limit their use in space-constrained installations.
• Tubular Membranes: Tubular membranes are used in systems that treat feed waters with high levels of suspended solids or harsh chemicals. Their larger diameter makes them more resistant to fouling, but they also have a lower surface area compared to hollow fibers, which can reduce overall system capacity.

Key Concept: The choice of membrane module depends on the characteristics of the feed water and the desired level of filtration. Hollow fiber membranes are generally preferred for large-scale systems due to their high surface area and compact design, while tubular and flat sheet membranes are used for more specialized applications.

5.1.2 Control Systems

Modern membrane filtration systems are equipped with automated control systems that monitor key performance indicators (KPIs) and adjust operational parameters to maintain optimal performance. These control systems are critical for preventing fouling, managing cleaning cycles, and ensuring the system operates efficiently.

Key functions of control systems include:

• Monitoring Transmembrane Pressure (TMP): TMP is one of the most important KPIs in membrane systems, as it provides an indication of fouling. As fouling occurs, TMP increases, signaling the need for backwashing or cleaning. The control system continuously monitors TMP and triggers cleaning cycles when necessary.
• Flux Monitoring: Flux, which measures the flow rate of water through the membrane per unit of surface area, is another critical parameter. A stable flux indicates that the membrane is operating efficiently, while a drop in flux can suggest fouling or membrane degradation. Control systems track flux and adjust feed pressures accordingly to maintain consistent filtration rates.
• Automated Cleaning Cycles: Control systems are often programmed to automatically initiate backwashing or Clean-In-Place (CIP) procedures based on TMP readings or scheduled intervals. This automation reduces the need for manual intervention and helps prevent fouling from becoming severe.

Operator’s Tip: Understanding how to interpret TMP and flux readings is essential for effective system operation. Regularly reviewing system data and setting appropriate cleaning thresholds will help maintain membrane performance and reduce downtime.

5.2 Pressure-Driven vs. Submerged Membranes

The configuration of membrane systems can vary based on the method used to drive water through the membrane. The two main configurations are pressure-driven systems and submerged membrane systems, each with its own advantages and applications.

5.2.1 Pressure-Driven Systems

In pressure-driven membrane systems, external pumps are used to force feed water through the membranes at high pressure. These systems are typically used in Nanofiltration (NF) and Reverse Osmosis (RO) processes, where higher operating pressures are required to push water through the small pores of the membranes. Pressure-driven systems can also be used in MF and UF processes, although the operating pressures are generally lower in these applications (ranging from 4 to 40 psi).

Key advantages of pressure-driven systems include:

• High Filtration Efficiency: Pressure-driven systems can achieve high levels of contaminant removal, including dissolved salts and small organic molecules.
• Compact Design: These systems are often more compact than submerged systems, as they rely on external pumps to maintain flow, rather than large basins.

However, the energy consumption of pressure-driven systems is higher due to the use of pumps, and they require more frequent maintenance to manage fouling.

5.2.2 Submerged Membranes

In submerged membrane systems, the membranes are placed in open feed water basins, and a suction pump creates a transmembrane pressure that pulls water through the membrane. These systems are commonly used in MF and UF applications, particularly in wastewater treatment and water reuse processes. The submerged configuration allows for lower energy consumption and is more suitable for treating water with high concentrations of suspended solids.

Key advantages of submerged membranes include:

• Lower Energy Costs: Since these systems rely on suction rather than high-pressure pumps, they consume less energy, making them more cost-effective for large-scale applications.
• Enhanced Fouling Control: Submerged systems are often equipped with air scour mechanisms, which use bursts of air to dislodge particles from the membrane surface and reduce fouling.

However, submerged systems typically require larger footprints due to the need for open basins, and they may have lower flux rates compared to pressure-driven systems.

Practical Example: In municipal wastewater treatment, submerged membrane systems are commonly used in Membrane Bioreactors (MBRs), where they efficiently remove suspended solids and reduce biological contaminants. The air scour mechanism helps keep the membranes clean and reduces the need for chemical cleaning.

Summary of Section 5: Components and Configurations

The performance of membrane filtration systems depends heavily on the configuration of the membrane modules and the choice of operating pressure. Hollow fiber membranes, flat sheet membranes, and tubular membranes each serve different roles based on the characteristics of the feed water and the filtration requirements. Control systems play a critical role in monitoring performance indicators like TMP and flux, automating cleaning cycles to reduce fouling. Operators must understand the differences between pressure-driven and submerged systems to select the appropriate configuration for their specific application, balancing factors such as energy efficiency, space constraints, and fouling control.

Effective system performance monitoring is essential for maintaining the efficiency and longevity of membrane filtration systems. By tracking specific Key Performance Indicators (KPIs) such as transmembrane pressure (TMP) and flux, operators can assess the system's health, predict fouling, and optimize performance. Proper management of system recovery and waste streams is also critical to ensuring overall operational efficiency. This expanded section will introduce advanced technical details, calculations, and additional monitoring methods for exam preparation.

6.1 Key Performance Indicators (KPIs)

6.1.1 Transmembrane Pressure (TMP)

TMP measures the pressure difference between the feed side and the permeate side of the membrane. TMP is a crucial KPI, as it reflects the level of membrane fouling and directly impacts system efficiency.

• Normal Operating Range: In MF and UF systems, TMP typically ranges between 4 and 40 psi, depending on the specific system design. In pressure-driven systems, higher TMP is required to push water through the membrane, while in submerged systems, suction pumps maintain a lower TMP (often below 10 psi).
• TMP and Fouling: Fouling increases the resistance to water flow, leading to a rise in TMP. A steady rise in TMP signals the need for cleaning, as excessive fouling can lead to higher energy consumption and potential membrane damage. Operators must monitor TMP and initiate cleaning procedures if TMP increases by 10-15% from baseline values. TMP monitoring should be integrated with flux tracking for a complete assessment of membrane performance.

Technical Example:

• Initial TMP: 10 psi
• TMP after fouling: 12 psi
• % Increase: (12 - 10) / 10 * 100 = 20%

Action: Since TMP has increased by more than 10-15%, a cleaning procedure is recommended to prevent irreversible fouling.

6.1.2 Flux

Flux measures the volume of water that passes through a unit area of membrane per unit of time, expressed in liters per square meter per hour (LMH) or gallons per square foot per day (GFD). Flux is a direct indicator of system performance, as it represents the membrane’s ability to process water efficiently.

Stable Flux: A stable flux indicates that the system is operating effectively. A drop in flux suggests that fouling is occurring, even if TMP remains within acceptable limits.

Flux Decline: Flux decline is a direct sign of membrane fouling. Cross-flow systems maintain more consistent flux by continuously sweeping away contaminants, while submerged systems may experience more significant flux declines unless cleaned regularly.

Specific Flux and Calculations

Specific flux normalizes flux by TMP, providing a clearer picture of membrane performance. It is calculated as:

Specific Flux = Flux / TMP

Technical Example:

• Measured Flux: 60 LMH
• TMP: 12 psi
• Specific Flux: 60 / 12 = 5 LMH/psi

A lower specific flux indicates fouling or declining membrane efficiency.

6.2 Process Efficiency and Recovery

6.2.1 System Recovery

System recovery is the percentage of feed water converted into permeate in a membrane filtration system. Higher recovery rates are desirable but can increase the risk of fouling by concentrating contaminants in the remaining water.

Typical Recovery Rates: In MF and UF systems, recovery rates typically range between 90% and 98%. In RO and NF systems, recovery rates are lower due to higher concentrations of dissolved salts in the reject stream.

Balancing Recovery and Fouling: Higher recovery rates lead to more efficient water processing but also increase fouling risk. Conversely, lower recovery rates reduce fouling but may result in greater waste.

Technical Example:

• Permeate Flow: 500 gallons per minute (GPM)
• Feed Flow: 550 GPM
• Recovery Rate: (500 / 550) * 100 = 90.9%

A recovery rate of 90.9% indicates that most of the feed water is converted into permeate, which is efficient for MF/UF systems but requires careful monitoring to avoid excessive fouling.

6.2.2 Waste Streams

Membrane filtration systems generate two primary waste streams: concentrate and backwash water.

Concentrate Management: In cross-flow filtration systems, the concentrate stream contains contaminants such as suspended solids, dissolved salts, and organic matter. Proper disposal or reuse of this concentrate is essential, as it often contains high concentrations of pollutants.

Backwash Water: Used to clean membranes by reversing the flow of water, backwash water must be managed carefully to avoid environmental harm. Operators must follow regulatory guidelines for disposal or treatment of backwash water.

6.3 Advanced Monitoring Techniques

6.3.1 Temperature-Corrected Specific Flux (TCSF)

Water viscosity changes with temperature, which affects flux measurements. To account for these variations, operators use Temperature-Corrected Specific Flux (TCSF) to normalize flux values across different operational temperatures.

TCSF = Measured Flux / Temperature Correction Factor (TCF)

• Measured Flux: 60 LMH
• TCF: 0.95 (for colder water)

TCSF: 60 / 0.95 = 63.2 LMH (corrected to standard conditions)

6.3.2 Membrane Integrity Testing

Membrane integrity testing is essential for verifying that the system is effectively removing pathogens and meeting regulatory standards for drinking water applications. The most common method is the Pressure Decay Test (PDT), which measures how well the membrane maintains pressure.

Log Removal Value (LRV) = log10(Feed Concentration / Permeate Concentration)

A higher LRV indicates more effective pathogen removal. Operators should perform integrity testing regularly, especially in drinking water applications, to ensure that the system is compliant with regulatory pathogen removal standards.

Summary of Section 6: System Performance Monitoring

System performance monitoring enables operators to optimize membrane efficiency, minimize water waste, and extend membrane life. TMP, flux, specific flux, and system recovery are key indicators that help detect fouling early and ensure the system operates efficiently. Advanced techniques such as TCSF and PDTs provide deeper insights for maintaining consistent performance across varying conditions. By closely monitoring these KPIs, operators can ensure reliable, cost-effective, and sustainable membrane filtration system operation.

The operation and maintenance of membrane filtration systems require strict adherence to safety protocols to protect both the operators and the equipment. Membrane systems involve the handling of hazardous chemicals, high-pressure equipment, and moving mechanical parts, all of which present potential risks. This section outlines essential safety protocols that every operator must follow, from the proper use of Personal Protective Equipment (PPE) to the safe handling of cleaning chemicals and the management of compressed air systems.

7.1 Handling Chemicals

Membrane cleaning processes often involve the use of chemicals, such as acids, alkalis, and oxidizing agents, to remove fouling and scale. These chemicals can be dangerous if mishandled, so operators must be fully trained in proper chemical handling procedures.

7.1.1 Personal Protective Equipment (PPE)

Operators must always wear appropriate Personal Protective Equipment (PPE) when handling cleaning chemicals or performing maintenance on membrane systems. PPE typically includes:

• Gloves: Chemical-resistant gloves, such as nitrile or neoprene, protect the hands from exposure to harmful substances.
• Eye Protection: Safety goggles or face shields must be worn to protect the eyes from chemical splashes.
• Respirators: In cases where hazardous fumes or vapors are present, operators must wear respirators designed to filter out airborne contaminants.
• Protective Clothing: Chemical-resistant aprons, overalls, or suits should be worn to protect the skin and clothing from exposure.

Operator’s Tip: Always inspect PPE before use to ensure it is in good condition and provides adequate protection. Worn or damaged PPE should be replaced immediately to prevent accidents.

7.1.2 Chemical Safety Procedures

Safe handling of chemicals begins with a thorough understanding of the Safety Data Sheets (SDS) for each chemical used in membrane cleaning and maintenance. The SDS provides critical information on the properties of the chemical, the risks associated with its use, and the recommended safety precautions.

Key procedures for chemical safety include:

• Proper Storage: Chemicals must be stored in well-ventilated areas away from heat sources and direct sunlight. Containers should be clearly labeled and kept sealed when not in use.
• Chemical Mixing: When mixing chemicals, operators should always add acid to water, not water to acid, to prevent dangerous reactions. Mixing incompatible chemicals, such as acids and oxidizers, should be avoided to prevent explosions or the release of toxic gases.
• Spill Response: Operators must be trained to respond to chemical spills quickly and safely. Spill kits should be readily available, and all spills must be contained and neutralized according to the SDS instructions.

Practical Example: When handling acids used for removing scaling, operators must wear full PPE and ensure that the area is well-ventilated. Any acid spills should be neutralized with a suitable alkaline solution, such as sodium bicarbonate, before cleanup.

7.2 Compressed Air and Moving Parts

Membrane filtration systems often incorporate mechanical components, such as pumps and air scour systems, that present potential hazards if not properly maintained. Compressed air is commonly used in air scouring processes to help dislodge fouling particles from membrane surfaces. While this process improves membrane cleaning, it can pose serious safety risks if not carefully managed.

7.2.1 Air Scouring Safety

Air scouring uses bursts of compressed air to create turbulence around the membranes, helping to remove accumulated particles and reduce fouling. While this process is highly effective in submerged membrane systems, improper handling of compressed air can result in injury or damage to the system.

Safety precautions for air scouring include:

• Pressure Regulation: Compressed air systems should be equipped with pressure regulators to prevent the system from exceeding safe operating limits. Over-pressurization can cause damage to the membranes or the system components.
• Air Supply Shutdown: Operators must ensure that the air supply is fully shut off and depressurized before performing maintenance on the system. Lockout/tagout (LOTO) procedures should be used to prevent accidental reactivation of the air supply during maintenance.
• Protective Barriers: Areas around air scour systems should be equipped with protective barriers to shield operators from accidental release of pressurized air.

Operator’s Tip: Regular inspections of the air scour system should be conducted to ensure that pressure regulators and safety valves are functioning properly. Any signs of wear or damage should be addressed immediately to prevent accidents.

7.2.2 Moving Parts and Equipment Safety

Pumps, valves, and other mechanical components used in membrane systems contain moving parts that can pose significant risks during maintenance or operation. To prevent injury, operators must follow strict safety protocols when working around mechanical equipment.

• Lockout/Tagout (LOTO) Procedures: Before performing maintenance on any mechanical component, operators must follow lockout/tagout procedures to ensure that the equipment is fully de-energized. This prevents accidental activation of the equipment while maintenance is being performed.
• Machine Guarding: Moving parts, such as pump shafts and belts, should be equipped with protective guards to prevent accidental contact. Guards should never be removed or bypassed during operation.

Key Concept: Lockout/tagout procedures are essential for preventing accidental reactivation of equipment during maintenance. Operators must be fully trained in LOTO protocols and follow them rigorously to ensure safety.

7.3 Hazardous Materials and Waste Disposal

Membrane filtration systems generate waste materials, including spent cleaning chemicals and contaminated water from backwashing. Proper disposal of these materials is essential for protecting the environment and ensuring compliance with regulatory requirements.

7.3.1 Chemical Waste Disposal

Spent cleaning solutions must be neutralized and disposed of according to local environmental regulations. Acidic and alkaline cleaning solutions, for example, must be neutralized before discharge into the wastewater system. Failure to properly neutralize chemical waste can result in environmental contamination and potential fines.

• Neutralization: Acids should be neutralized with a suitable alkaline substance, such as sodium hydroxide, while alkalis should be neutralized with acids like citric acid. The neutralized solution can then be safely discharged or treated further, depending on local regulations.
• Disposal Permits: Facilities may need to obtain permits for the disposal of chemical waste. Operators should work with local environmental authorities to ensure that all waste disposal practices comply with the relevant laws and regulations.

7.3.2 Disposal of Contaminated Water

Water used for backwashing or cleaning may contain high levels of contaminants, including suspended solids, biological material, and residual chemicals. This water must be treated or properly disposed of to avoid environmental harm.

• On-Site Treatment: Some facilities are equipped with on-site treatment systems that can handle contaminated water from backwashing or cleaning. These systems filter or neutralize the contaminants, allowing the water to be reused or safely discharged.
• Off-Site Disposal: In cases where on-site treatment is not feasible, contaminated water must be collected and transported to an appropriate waste treatment facility.

Summary of Section 7: Safety Protocols for Membrane System Operation

Safety is a critical consideration in the operation and maintenance of membrane filtration systems. Operators must be trained in the safe handling of chemicals, the proper use of PPE, and the operation of mechanical components such as air scour systems and pumps. Lockout/tagout procedures and proper disposal of hazardous waste are essential for preventing accidents and protecting the environment. By following these safety protocols, operators can minimize risks and ensure the safe and efficient operation of membrane filtration systems.

H2oCareerPro is committed to helping operators understand membrane filtration and other water treatment technologies. Stay tuned for more insights on advanced water treatment solutions.
